A New Flux Reversal Motor With Slot and Tooth Permanent Magnets

Researcher: Mohammad Reza Sarshar (2023-2025)

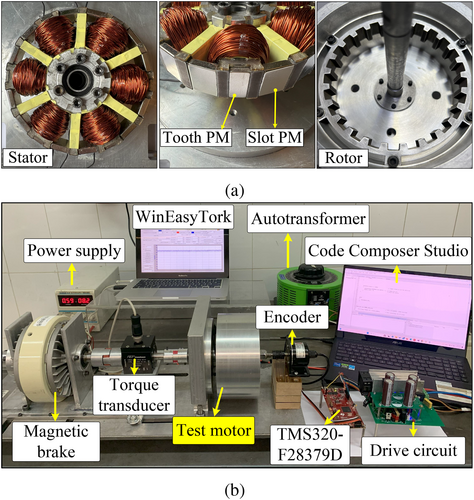

This research proposes a new consequent‐pole (CP) flux reversal permanent magnet (FRPM) motor with homopolar PMs parked in the stator slot openings and between the wound poles’ teeth. The proposed PM pattern offers an effective PM usage and lowers the effective armature air‐gap length while increasing the output torque. The operating principle of the motor is analysed using a flux modulation theory (FMT) and the predominant harmonics of the air‐gap flux density are unveiled. Furthermore, the proposed structure is comparatively analysed with a CPFRPM and a conventional FRPM (CFRPM). These structures are optimised with a genetic algorithm, and by using the finite element analysis (FEA), the no‐load and full‐load performances are studied. Thanks to effective PM placement, the torque density is improved by 65% and 29% compared to the CFRPM and CPFRPM, respectively.

Test Rig

A hybrid excited flux switching permanent magnet motor with segmented magnets for electric vehicle applications

Researcher: Tohid Sharifi (2020-2021)

Two different types of tests are applied in this project, known as the Motor Test and Thermal Test. The former is related to electromagnetic performance. However, the latter describes the temperature of the motor. The Thermal Test is required to ensure from continuous operation of the motor. In this test, we use three Pt100 temperature sensors. First is mounted in the Ambient. The second is placed on the housing of the motor, and the third one is inserted into the winding using the holes in the front door.

Motor Test
Thermal Test

An Improved Linear Switched Reluctance Motor

Researcher: Matin Vatani (2019-2020)

One of EMTRL’s goals is to perform different tests on electrical machines. The parameters of the electrical machines extract by using these tests. The following tests are available in EMTRL.

  • Back EMF
  • Torque-Angle Characteristics
  • Average Torque
  • Torque Ripple
  • Cogging Torque
  • Efficiency
  • Losses
  • Blocked Rotor Test
  • No Load Test
  • etc.

There is also the ability to design new benchmarks at EMTRL to measure some of the characteristics of specific Electrical machines. The following are some of the testing steps performed at EMTRL.

Carried out by Shahin Asgari under the supervision of Dr. Mojtaba Mirsalim.
